CREEKO

Trail running shoes designed to provide a stable and safe creek crossing experience.

The project focuses on designing an equipment piece for the user of Eaton Canyon, Pasadena.




Project

Student Project

Product Design 4

Duration

2019 Summer

14 weeks

Disciplines

Performance Footwear design

Color, Material, Finish



EATON CANYON // MULTIPLE TERRAINS

The first half of the trail is easy for most hikers. The second half of it is more challenging. Hikers need to cross the creek multiple times to get to the waterfall.


Dirt Road

The soft dirt road has small rocks along the road. Wide enough for a few people walking at a time.

Rugged Slope

Some parts of the slope are narrow

and have sand on the surface that makes it slippery.

Rocky Creek

Creek rocks and branches allow people to walk across the creek without stepping into the water.


INTERVIEWS

Sydney is a weekend hiker, she loves Eaton Canyon because it's a fairly easy trail for her since she has weak knees, but she also has some concern when crossing the creek. She always packs light and wears comfortable hiking shoes.

" Wet shoes and socks are uncomfortable,

and they hurt my feet. "

" Be careful when you cross the creek! You can get hurt easily if you don’t have good gear. "

INSIGHTS + OPPORTUNITIES

from research & interview

Eaton Canyon has a lot of rugged surfaces along the trail, but a lot of hikers wear normal running shoes, which don't provide enough stability and protection.

Many hikers utilize the creek rocks and branches to cross the creek because they don't want to get their feet wet. However, they don't have proper shoes to provide grip on slippery surfaces.

Hiking with wet shoes and socks is not ideal for hikers as it will hurt their feet, and even got affected since there are bacteria in the creek. They need shoes that keep their feet dry along the trail.

MATERIAL & FINISH


Water-Repellent

white-heavy-compression-double-knit-w-ma
881e1a403e6c472ee921453b755dc617_edited.

Guard

Transparency

681198e02c0fb93f854a6ad3006b72b3_edited.
Section view step on rock copy.gif
Intro Rendering.png

Gaiter

Pull string

Heel guards

Nylon

(exterior)

Mesh

(Interior)

Toe bump

CREEKO

Trail running shoes designed to provide a stable and safe creek crossing experience.

Upper Design

Tight fitting

Breathability

Comfort

Protection

Waterproof

Intro Section view.png

Sole Design

Stability

Traction

Protection

Comfort

Durable

Soft Cushioning

Hard Foam

Durable Treads

Concave

Surface

The concave surfaces at the sole increase the contact surface between the shoes and the rock. It formed into the shape of the rock, in order to increase grip and stability.

SAMPLE MODEL


PROCESS

I started with stepping on the creek rocks barefoot to study how the biomechanism of my feet react to the rock surface.

Screen%252BShot%252B2019-06-10%252Bat%25
Screen%252BShot%252B2019-06-10%252Bat%25
Screen%252BShot%252B2019-06-10%252Bat%25

Then explored ideas on paper and made mock-up side by side, which allowed me to test my idea quickly. Tried to figure out how to mimic the wrapping motion with the sole, but not losing protection to the feet.

Untitled_Artwork 27.png
Untitled_Artwork 29.png
Untitled_Artwork 28.png
Untitled_Artwork 31.png
Untitled_Artwork 32.png
Untitled_Artwork 33.png

^  Small treads at the heel and

    Larger treads at the forefoot

Untitled_Artwork 25.png
Untitled_Artwork 24.png
Untitled_Artwork 23.png

After doing the hacking mockups, I decided what kind of feature is needed for the design. Sketching on a vacuum-formed shoe last is really helpful for scale, size, and placement of all the parts.

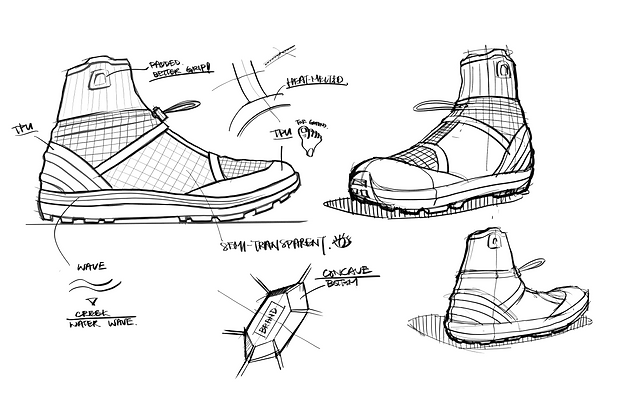

Back to sketching to refine the aesthetic, feature placement,

as well as material and finishing.

Untitled_Artwork 26 copy.png
Final direction with call out.png

Refined the tech pack in AI and then started to build the appearance model.

I draw my design on a tapped last to create my own pattern for sewing.

The sole was modeled in Rhino and Solidworks and 3D printed.
